Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electroncis |
| Model Number: | AH2201 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Operating System: | Android 7.0 | Display: | 4.0 Inch IPS Panel |
|---|---|---|---|
| Memory: | RAM：2GB ROM：16GB | Compatible Protocol: | 13.56MHz |
| Dimension: | 158*75*28±2mm | Communication Interfa: | USB |
| Highlight: | PDA RFID Handheld Reader,28cm RFID Handheld Reader,HF RFID Handheld Reader |
||

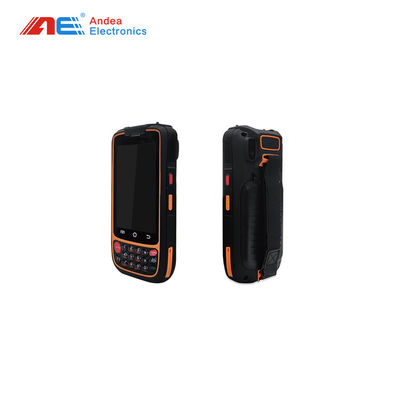

RFID Handheld Reader PDA 28cm Scanner Reading Range HF
Product Introduction:
RFID Handheld Reader AH2201 is an industry - level RFID handheld mobile devices, the internal power of high performance integrated RFID read / write modules, support ISO 15693 international agreements - standard, identify the distance above 28cm ( standard card size ), with anti - collision algorithm, audio control (output), SD slot, IC card slot, contactless HF RFID, GPRS, WCDMA, WiFi and Bluetooth connectivity.
| Technical Specification | ||
| Operating System | Android 7.0 | |
| CPU | Coretex-A53 1.3GHz |
|
| RAM / ROM | RAM: 2GB ROM: 16GB | |
| Display | 4.0 inch IPS panel, Resolution:480*800,HD full viewing angle, viewable under sunshine | |
| Keyboard | Number keyboard and function keyboard | |
| Touch Screen | Support multi-point capacitive touch screen, workable with glove | |
| Micro SD card | Support 128G MICRO SD card | |
| Audio | Support voice announment | |
| Wireless Communication |
GPRS |
GPRS, EDGE , 4-band 900/1800,850/1900 |
| 4G | ||
|
WIFI |
IEEE802.11a/b/g/n | |
| Bluetooth | Meet Bluetooth 4.0 | |
| Indicator Light | Internet indicator light, charging indicator light | |
| Battery | Capacity | 5200mAh lithium polymer |
| Stand-by Time | When fully charged, close wireless communication functions and stand-by time is 360h and above | |
| Operating Time | ＞6h | |
| Charging Time | ＜10h | |
| RFID Parameters | ||
| Compatible Protocol |
ISO15693/ISO18000-3M1 |
|
| Operating Frequency | 13.56 MHz | |
| RF Power | 0.25-1.5W | |
| Reading Range | 28cm (standard RFID card) | |
| Anti-collision Algorithm | Support | |
| Working Environment | ||
| Operating Temperature | -20℃~50℃ | |
| Storage Temperature | -20℃~70℃ | |
| Relative Humility | 5%~95% RH, no condense | |
| Physical Parameters | ||
| Gross Weight | <340g | |
| Dimension | 158*75*28 ± 2mm | |
Product Application:
Widely applied to book tickets identification, asset management, warehouse management, inspection, inventory tracking, and other fields.
