Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | RD2104 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| RF Power: | 0.25~1.5W (adjustable) | Antenna Interface: | SMA*4 |
|---|---|---|---|
| Reading Speed: | 70pcs/sec | Communication Interface: | RS232, RS485, Ethernet, USB |
| Power Supply: | 12V DC | Compatiable Protocol: | ISO/IEC 15693 And ISO/IEC 18000-3M1 |
| Operating Frequency: | 13.56 MHz | Working Mode: | Host Mode And Auto Read Mode（configurable） |
| Maximum Power Consumption: | 10W | Shell Material: | Aluminum Alloy |
| Highlight: | 13.56MHz RFID Card Reader,Interface RS232 RFID Card Reader,12V DC RFID Card Reader |
||

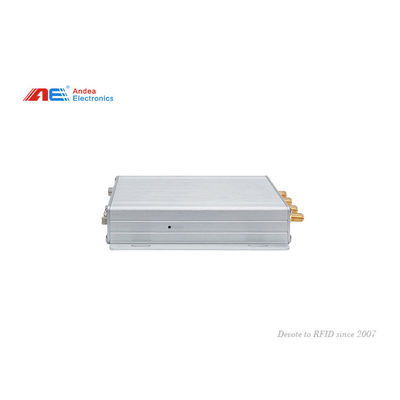

HF RFID Card Reader Writer 13.56MHz Communication Interface RS232/RS485 for Parking System
Product Introduction:
Andea HF Mid Range Reader series owns high sensitivity and fast collision-resistance algorithm.
RD2104 HF medium power RFID reader has high sensitivity and fast anti-collision algorithm, which operates at a frequency of 13.56 MHz and are designed to suit any business application and has wide choices depending upon the user’s specification and needs. Anti-collision algorithm allows fast processing, reading speed is up to 70 pieces per second.
Product Features:
| Parameter/Model | RD2101 | RD2104/RD2104-F11 |
| Operating Frequency | 13.56 MHz | |
| Support Standard | ISO/IEC 15693 and ISO/IEC 18000-3M1 | |
| RF Power | 0.25~1.5W(configurable, the system default setting is1.5W) | |
| Antenna Interface | SMA×1 | SMA×4 |
| Communication Interface | RS232 /RS485/USB/ Ethernet | |
| Working Mode | host mode and auto read mode(configurable) | |
| Supply Voltage | 12VDC | |
| Maximum Power Consumption | 10W | |
| Shell Material | aluminum alloy | |
| Dimensions | 123×105×25mm | |
| Maximum Operating Temperature | 40℃ | |
Product Application:
Library, Archive, Production Automation, Laundry Automation Management, Drug Tracking, etc.
