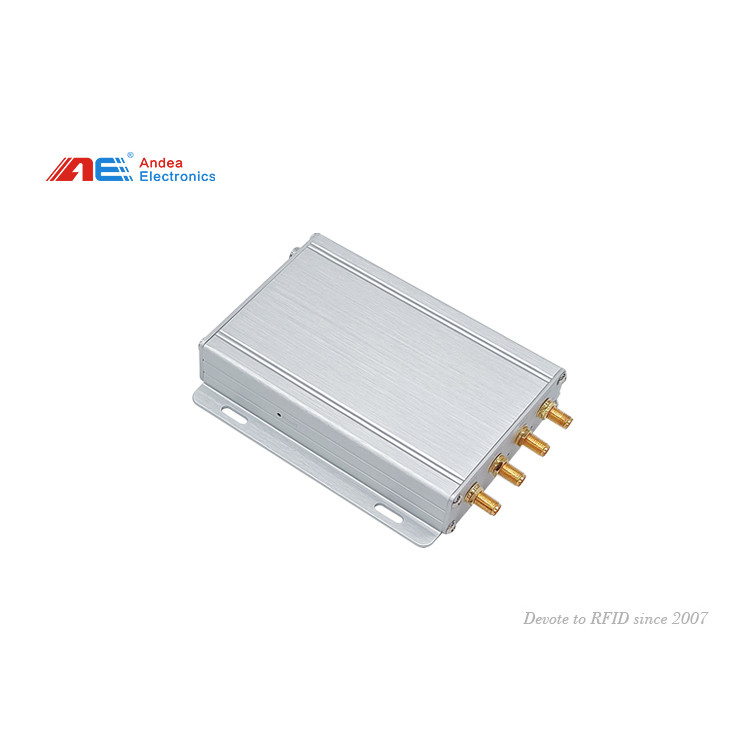

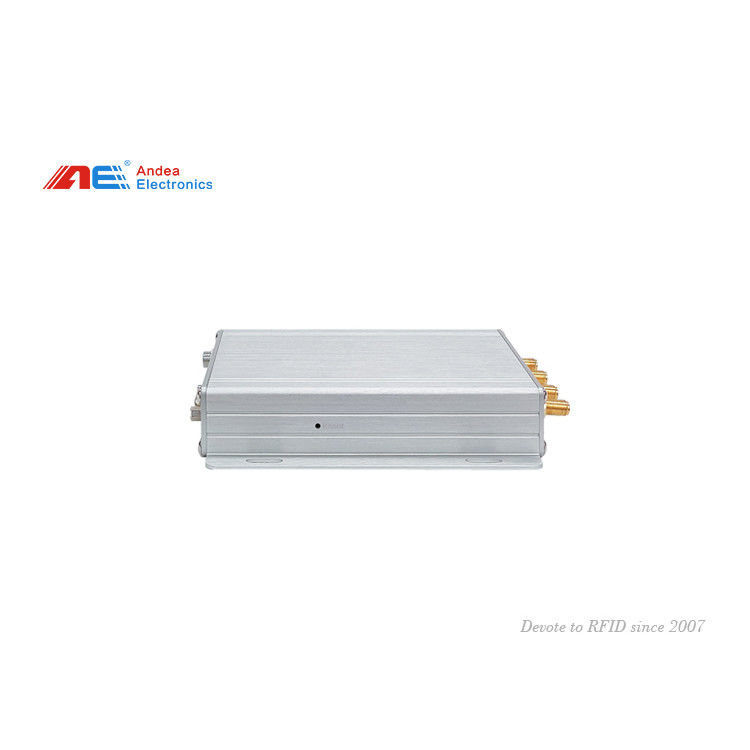

Passive USB Card HF ISO 15693 13.56MHz RFID Reader Long Reading Distance

Product Introduction:

RD2104 HF medium power RFID reader has high sensitivity and fast anti-collision algorithm, which operates at a frequency of 13.56 MHz and are designed to suit any business application and has wide choices depending upon the user’s specification and needs. Anti-collision algorithm allows fast processing, reading speed is up to 70 pieces per second.

Product Features:

• Support ISO 15693 and ISO 18000-3M1 standard.
• RF power: 0.25~1.5W (adjustable).
• Antenna interface: SMA*4
• Fast anti-collision processing algorithm; the speed of reading the tag is up to 70pcs / sec.
• Reading and writing range: single antenna can reach 75cm (antenna size: 560*650mm); (this distance is related to card performance and antenna size).
• Communication interface: RS232, RS485, Ethernet, USB.
• Support noise detection, can detect the environment whether there is interference.
• Power supply: 12V DC.
• It has multiple working modes which can be configured through software tools.
• With short circuit protection and overheat protection function.

Product Application:

It can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system.
