| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electroncis |
| Model Number: | SSM301B |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 50~100 PCS Per Month |
| Operating Frequency: | 13.56 MHz | RF Power: | 1.5W |
|---|---|---|---|
| Net Width Per Layer: | 500mm Approximately | Compatible Protocols: | ISO15693 Standards |
| Dimension: | 1378*600*420mm | Weigh: | 90KG |
| High Light: | FCC Smart Library RFID Reader,13.56MHz Library RFID Reader |
||

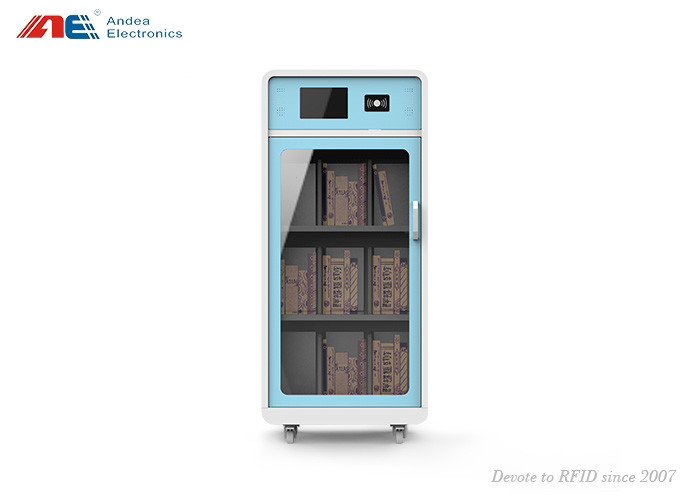

Mini Smart Book Corner RFID Library 24 Hour Unmanned Self-service Books Borrowing
Functions
♦ 24 hour unmanned self-service books borrowing
♦ Using RFID Internet of Things technology, books automatically identified
♦ Self-service circulation, books can be cycled on and off the shelf
♦ After readers returning the book to the shelf, the book will automatically switch to the loanable state without manual intervention.
Features
♦ 24-hour self-service borrowing and returning, breaking through the limitations of time and space
♦ Flexible deployment, plug-and-play
♦ Small footprint, easy to be plad (occu Pieces only 0.25㎡)
♦ Multiple identification verification
♦ Large storage, able to put in 80-100 books
♦ Independent door opening control on each layer; Four layers in total
♦ Android and Windows, HF and UHF optional
♦ Integrated with timing module
Applicable snarios
It can be plad indoors and corridors in plas with heavy traffic flow, such as public libraries, school teaching areas, subways, hospitals, offi building halls etc., convenient for readers to borrow books.
High-Lights:
High Efficiency
Readers can finish borrowing and returning within 5 seconds, and can borrow multiple books at the same time.
Visual Design
The bookcase is transparent and visible, which can improve readers’ sense of using experience.
Large Storage of Books
80-100 books can be stored.
Efficient Identification of Readers
Readers can choose fa recognition, RFID reader card, ID card (optional), etc., to be identified.
Audio Prompt
The Smart Bookshelf is equipped with audio speakers, which can realize clear audio reminder function and standardize the reader's operation process.
Book Circulation
The Smart Bookshelf features "recyclable on and off shelves" function, that readers can directly return the books on the shelves, and the books will switch into the loanable state automatically. This feature can reduce the time and cost of logistics and staff.
Easy to Maintain
Integrated with individual modules, which can be maintained and replad by non-technical staff.
Network Connection
The Smart Bookshelf supports wired network connection and WIFI. 2G/3G/4G/5G network are optional.
Hardware Configuration
| Hardware | Description |
| Cabinet |
♦Made of high-quality sheet metal with fine craftsmanship ♦Sprayed with environmental-friendly paint, durable and not easy to corrode ♦ Compact and fashionable appearan with the color tone of blue and white ♦Bio-fit modular structure design, safe to use and easy to maintain |
| Android & Capacitive Touch Integrated device |
♦ Low power consumption and high performance ♦ Quad-core prossor ♦ 7 inch display AM9D-200 Motherboard 1G Memory 8GStorage WiFi 2U*2com*1RS485 1280*800 Android 6.0 Maximum Resolution: 1024*600 ♦ Optional 4G network |
| Reader Card Identification Area |
♦ HF Multiple-Protocols Reader RL86S(Serial Port): Complied with Reader Card of ISO15693, ISO14443-A, ISO14443-B(physical card number only) ♦ Dimension of Identification Area: 55*60*25mm |
| Books Identification Area (HF / UHF) |
HF: ♦Complied with ISO15693 standards ♦RF Power: 1.5W ♦3 layers of bookshelf, with 4 built-in antennas for each layer ♦Net width per layer: 500mm approximately |
|
UHF: ♦Operating Frequency: 860~960 MHz ♦Complied with EPCglobal Gen 2, ISO 18000-6C standards ♦Maximum Gain: 32 db ♦3 layers of bookshelf, with 3 built-in antennas for each layer ♦Net width per layer: 500mm approximately |
|
| Electric-Control Lock (with Lock Control Board) |
♦One gate design, integrated 1 way electric control lock. ♦ Supporting emergent unlocking function. Momentary power-on time of unlocking is less than 1 second. ♦ Does not consume electricity when the door is closed and locked. Able to be used for over 1 million times. |
| Power Module |
♦ Input: 200-240V ♦ Output: 12V 12.5A ♦ Power: 150W ♦ 3C and certification ♦ Able to operate at -30~70℃ ♦ Able to withstand 300VAC input surge voltage for 5s ♦ Protection for output short circuit, over current, over voltage, over temperature |
| Leakage Protection Module | ♦Using Chint Leakage Protection Module 16A/2P with 3C certification, providing protection for overloadleakageshort circuit and ensuring the safety of the book corner |
| Light Control Module and Lighting Disinfection |
♦Serial light control motherboard ♦Standard 12V high-brightness lighting strip ♦12V ultraviolet disinfection strip is optional |
| Audio |
♦ LCD TV cabinet speaker ♦ Dual speakers and diaphragm with clear sound |
| device Interface |
♦ 3C certification power interfa module and national standard product power interface ♦ RJ45 interface |
| Voltage Input and Power |
♦ Input: 200-240V ♦ Power: 120W |
| Dimension and Weight |
♦Dimension: 1378(Height)*600(Width)*420(Depth) ♦Weigh: 90KG |
