Place of Origin: | CHINA |
---|---|
Brand Name: | AE |
Model Number: | LSG618 |
Minimum Order Quantity: | 1 Piece |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 3~5 work days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 500 Sets Per Month |
Operating Frequency: | 860~960MHz | Protocol: | EPC Global UHF Class 1 Gen 2 And ISO 18000-6C |
---|---|---|---|
Communication Interfa: | Ethernet, RS232, USB, WIFI | Operating Temperature: | 50℃ |
External Dimensions: | 1511.5*469*46mm | Net Weight: | 26kg |
Alarm Method: | Sound-light Alarm | Waterproof: | Not Support |
Highlight: | 960MHz Library RFID Reader,RS232 Library RFID Reader |

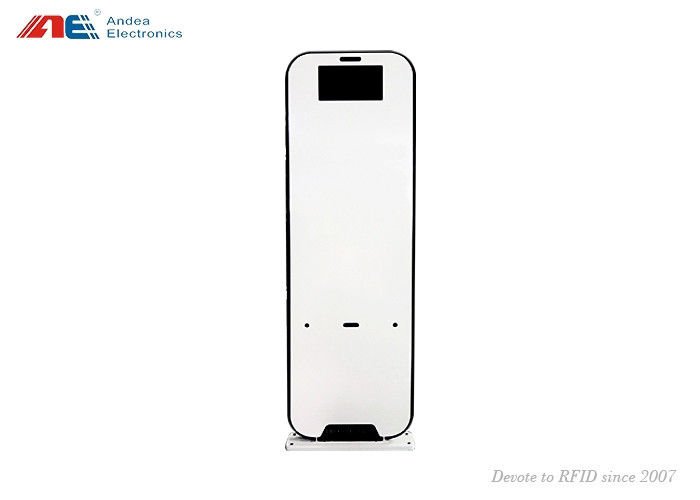

UHF RFID Gate Antenna UHF Pedestal Used In Libraries/Reading Rooms
Product Description
LSG618 UHF multiple aisles security access control equipment system is a high-performance RFID tag channel machine. The system uses UHF RFID technology and it is equipped with high-performance master and slave gate antennas, which can quickly detect multiple tags passing through channels and illegal tags with sound and light alarms. It is widely used in libraries, reading rooms, archives, smart retail and tool management, etc.
Product Parameters
Model | LSG618 |
Operating Frequency |
860~960MHz |
Protocol |
EPC Global UHF Class 1 Gen 2 / ISO 18000-6C |
Display Screen |
10.1 inch LCD screen to show the flow of people in and out |
Aisle Width |
90~220CM,suggest 90~110CM |
Communication Interfa |
Ethernet, RS232, USB, WIFI |
Power Supply |
AC 100~240V 50~60Hz |
RF Output Power |
32dBm±1db (maximum power output) |
Operating Mode |
Offline / Networking |
Storage Capacity of Alarm Records |
>100000 records |
Storage Capacity of Daily People Counting Records |
>3500 records |
Operating Temperature |
-20~50℃ |
Housing Material |
Acrylic, Aluminum and Sheet Metal |
Product Features
• Novel appearance design, the outer frame is formed by aluminum profile, beautiful and delicate.
• High system integration, simpler installation, commissioning and development by users.
• Unique antenna design, high reading rate; effective control of wrong reading distance.
• Support multiple gates cascade mode.
• Support online upgrade function.
• Support mobile phone to connect the gate.
• SC gate with 10-inch display.
• Supports the matching of three-segment EPC code points for illegal label recognition alarms; Supports online and offline alarms.
• The independent design of the control host provides safe voltage for the gate to ensure personal safety.
• Rich external communication interfas (USB, serial port, Ethernet, WIFI) to support multiple modes acssce.
• Ethernet supports TCP protocol and supports active notification mode.
Product Application
RFID library management, RFID archive management, etc.
