| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | RD202BL |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Color: | White And Black | Voltage: | 12V DC |
|---|---|---|---|
| Interface: | RS232 | Housing Material: | Acrylic And Aluminium Alloy |
| Protocol: | ISO15693 And ISO18000-3M1 | Weight: | 3150g |
| RF Power: | 0.2W | Dimension: | 410*300*29mm |
| Frequency: | 13.56MHz | ||
| Highlight: | RD202BL Desktop RFID Reader,Archive Management Desktop RFID Reader,13.56MHz usb rfid card reader |
||

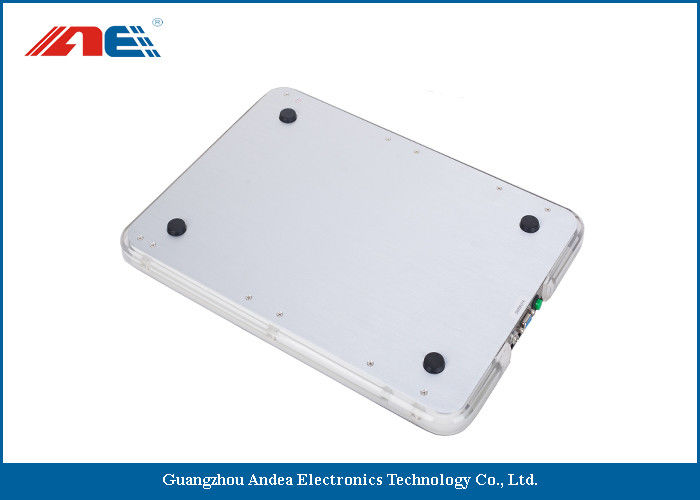

Black and White Desktop RFID Reader For Library / Archive Management
Product Applications
Quick anti-collision algorithm, identify speed can be up to 50 tags per second
Acrylic Desktop RFID Reader Anti-metal For Library / Archive Management
The RD202BL is an integrated desktop RFID reader that integrates a reader/writer module and antenna into one unit. This advand reader reads tags compliant to ISO15693 and ISO18000-3 standards. It provides high-sensitivity read and write capability and an efficient anti-collision algorithm with a read speed of up to 50 tags per second. For its metal shielding design, this highly innovative model allows to be used on metal desktop, which is rarely seen in an high frequency RFID reader.
Product Parameters
| Model | RD202BL | |
| Compatible Protocol | ISO15693, ISO18000-3M1 | |
| RF Power | 0.25~1.5W (adjustable) | |
| Weight | 3150g | |
| Max Power Consumption | 3.5W | |
| Voltage | 12V DC | |
| Communication Interface | RS232 | |
| Design | Anti-metal | |
| Operating Frequency | 13.56MHz | |
| Housing Material | Acrylic and Aluminium alloy | |
| Reading Range | 40cm | |
| Misreading Range | ≤10cm | |
| Dimensions | 410*300*29mm | |
