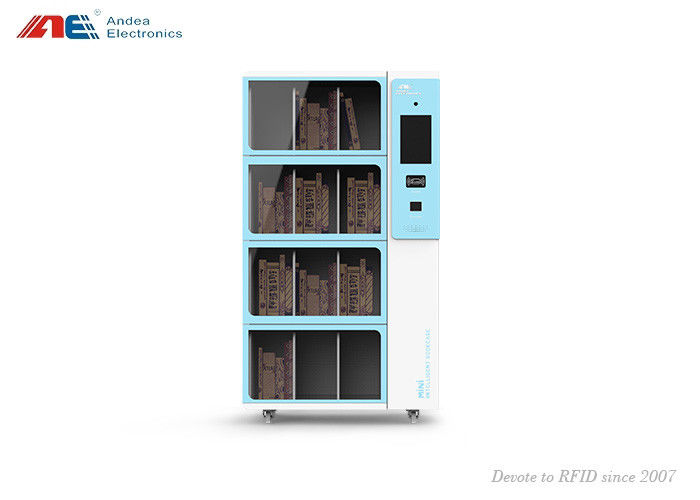

MINI Smart Bookcase RFID Library Reader 24 Hours Books Check Out

MINI Smart Bookcase RFID Library Reader 24 Hours Books Check Out
MINI Smart Bookcase RFID Library Reader 24 Hours Books Check Out

Large Image :  MINI Smart Bookcase RFID Library Reader 24 Hours Books Check Out

Product Details:

Place of Origin: CHINA
Brand Name: Andea Electroncis
Certification: CE and FCC
Model Number: SSM201B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3~5 work days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 50~100 PCS Per Month
Detailed Product Description
Operating System: Windows Or Android Type: Self-service Check Out Machine
Material: Metal Sheet Size: 1589*879*420mm
Frequency: HF Or UHF Application: Schools, Libraries, Offices, Coffee Shop
High Light:

rfid detector

,

rfid tag reader

MINI Smart Bookcase RFID Library Reader 24 Hours Books Check Out



Functions:

  • 24 hour unmanned self-service books borrowing
  • Using RFID Internet of Things technology, books automatically identified
  • Self-service circulation, books can be cycled on and off the shelf
  • After readers returning the book to the shelf, the book will automatically switch to the loanable state without manual intervention.



Features:

  • 24-hour self-service borrowing and returning, breaking through the limitations of time and space
  • Flexible deployment, plug-and-play
  • Small footprint, easy to be placed (occupies only 0.38㎡)
  • Multiple identification verification
  • Large storage, able to put in 100-120 books
  • Independent door opening control on each layer; Four layers in total
  • Android and Windows, HF and UHF optional
  • Integrated with timing module



Hardware Performance and Configuration:



Hardware

Description

Craftsmanship and Appearance

  • Made of high-quality sheet metal with fine craftsmanship
  • Sprayed with environmental-friendly paint, durable and not easy to corrodeCompact and beautiful appearance with the color tone of blue and white
  • Bio-fit modular structure design, safe to use and easy to maintain

Capacitive Touch Display

  • Embedded industrial display screen of high sensitivity
  • High temperature resistant, shockproof and explosion-proof
  • 10.1 inch display1280*80016:10
  • Brightness: 400cd/m²
  • 10-point touch Respond Speed: less than 4ms
  • Surface Hardness: 6H
  • Maximum Resolution: 4096x4096

Industrial Host Computer

(Android / Windows)

Android:

  • Using Rockchips Chip, ensuring low power consumption and high performance
  • l 28nm HKMG, quad-core processor Cortex-A17, RK3288 motherboard
  • 2GB Storage8GB flash 3*RS232 1*RS485 4*USB EthernetWiFiBluetooth
  • Able to operate at -20~60℃
  • Android 7.1
  • Optional 4G full Netcom module

Windows:

  • Using a new generation of processor with high-speed chipset, ensuring low power consumption and high performance
  • 3C and CE Certification
  • Able to operate at -20~60℃
  • Win10 system, Intel-i3-6th generation CPU, 8G memory, 128G solid-state hard drive, with WiFi, 4G optional, configuration can also be customized according to needs

Reader Card Identification Area

  • HF Multiple-Protocols Reader RL86S(Serial Port): Complied with Reader Card of ISO15693, ISO14443-A, ISO14443-B(physical card number only)
  • Dimension of Reading Area: 55*60*25mm

Books Identification Area (HF / UHF)

HF:

  • Complied with ISO15693 standards
  • RF Power: 1.5W
  • 4 layers of bookshelf, with 4 built-in antennas for each layer.
  • Net width per layer: 480mm approximately

UHF:

  • Operating Frequency: 860~960MHz
  • Complied with EPCglobal Gen 2, ISO 18000-6C standards
  • Maximum Gain: 32 db
  • 4 layers of bookshelf, with 4 built-in antennas for each layer
  • Net width per layer: 510mm approximately

Electric-Control Lock (with Lock Control Board)

  • Each layer has an independent built-in electric control lock to control the door opening individually. A total of 4 electric control locks are integrated.
  • Supporting emergent unlocking function. Momentary power-on time of unlocking is less than 1 second.
  • Does not consume electricity when the door is closed and locked. Able to be used for over 1 million times.

Power Module

  • Input: 200-240V
  • Output: 12V 12.5A
  • Power: 150W
  • 3C and CE Certification
  • Able to operate at -30~70℃
  • Able to withstand 300VAC input surge voltage for 5s
  • Protection for output short circuit, over current, over voltage, over temperature

1D and 2D Scanning Module

  • Integrated with professional built-in 2D scanner and Book barcode reader, able to read 1D and 2D barcodes of mobile phones with various screen brightness
  • Built-in super-sensitive response module, fast sensing, fast barcode reading and soft light processing
  • Light Source: 5600K LEDs (illumination); Image Sensor: 752pixels(H)*480 pixels(V); Processor: ARM32-bit; with large viewing angle up to 115° *90° and ambient light resistance of 100000 Lux

Face Recognition Camera

(Monocular)

  • Using Aptina's CMOS and Taiwan's new DSP technology to achieve high-quality image output
  • Integrated structure design, able to automatically adjust white balance and AE, which can configure the camera parameters according to the actual situation
  • Lightning protection
  • Highest resolution: 1920*1080; Backlight Compensation 2 million pixels; Transmission rate: 480MB/S

Timing Module

  • Using De-ele timing module, industrial grade single-chip microcomputer, ensuring safety capacitor and able to switch on/off according to timing set

Leakage Protection Module

  • Using Chint Leakage Protection Module 16A/2P with 3C Certification, providing protection for overloadleakageshort circuit and ensuring the safety of the book cabinet

Light Control Module and Lighting Disinfection

  • Serial light control motherboard
  • Standard 12V high-brightness lighting strip
  • 12V ultraviolet disinfection strip is optional

Audio

  • LCD TV cabinet speaker
  • Dual speakers and diaphragm with clear sound

Device Interface

  • 3C certificated power interface module and national standard product power interface
  • RJ45 interface

Voltage Input and Power

  • Input: 200-240V
  • Power: 120W

Dimension and Weight

  • Dimension: 1589(Height)*879(Width)*420(Depth)
  • Weigh: 150KG



Applicable scenarios:

It can be placed indoors and corridors in places with heavy traffic flow, such as public libraries, school teaching areas, subways, hospitals, office building halls etc., convenient for readers to borrow books.



MINI Smart Bookcase RFID Library Reader 24 Hours Books Check Out 0



High-Lights:



  • High Efficiency: Readers can finish borrowing and returning within 5 seconds, and can borrow multiple books at the same time.
  • Visual Design: The bookcase is transparent and visible, which can improve readers’ sense of using experience.
  • Independent Management: Each grid is equipped with an independent electronic control lock, which can realize independent detection and operation management of each layer.
  • Large Storage of Books: 100-120 books can be stored.
  • Efficient Identification of Readers: Readers can choose face recognition, RFID reader card, ID card (optional), etc., to be identified.
  • Audio Prompt: The smart book cabinet is equipped with audio speakers, which can realize clear audio reminder function and standardize the reader's operation process.
  • Book Circulation: The smart book cabinet features "recyclable on and off shelves" function, that readers can directly return the books on the shelves, and the books will switch into the loanable state automatically. This feature can reduce the time and cost of logistics and staff.
  • Easy to Maintain: Integrated with individual modules, which can be maintained and replaced by non-technical staff.
  • Network Connection: The Smart Bookshelf supports wired network connection and WIFI. 2G/3G/4G/5G network are optional.
