Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | RL173 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Compatible Protocol: | ISO 15693 & ISO 18000-3M1 | Compatible Tags: | ICODE SLI / SLIX / SLIX2 |
|---|---|---|---|
| Communication Interface: | USB | Working Mode: | Host And Active Mode |
| Output UID: | Support | Output Block Data: | Support |
| Highlight: | rfid desktop reader,13.56 mhz rfid reader writer |
||

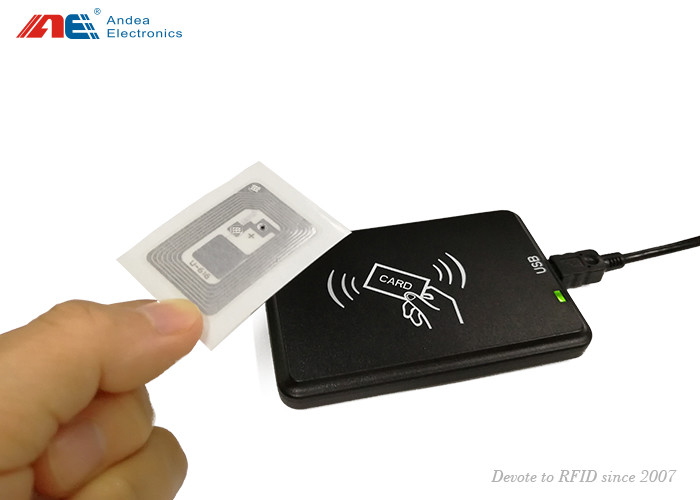

RL173 HF reader writer supports to read and write ICODE SLI / SLIX / SLIX2, TI tag-it HF Plus / TI tag-it HF Pro / Tag-it HF standard tags.
Different from other products in the market, it uses high standard chip to realize read and write functions together. It is developed as a full-function device to meet the clients special requirements like output UID in keyboard emulation, reverse UID, also to output tag's block data in hexadecimal string and ASCII. No need to install driver, this reader writer is plug and play design.
Product Features:
USB interface plug and play
Integrated keyboard emulation (KEMU) / cursor output function
All-in-one embedded RFID reader writer
ICODE SLI/SLIX/SLIX2 RFID reader writer
| Technical Specification | ||
| Model | RL173 | |
| Operating Frequency | 13.56 MHz (±7KHz) | |
| Compatible Protocol | ISO 15693 & ISO 18000-3M1 | |
| Communication Interface | USB | |
| Reading Range | 16cm | |
| Workig Mode | Host and Active Mode | |
| Plug & Play | Support | |
| Keyboard Emulation | Support | |
| Anti-Collision Algorithm | Support | |
| Working Voltage | DC 5V (USB power supply) | |
| Max Power Consumption | 0.65W | |
| Dimension | 105*70*10mm | |
| Weight | 46g | |
Product Application:
RL173 HF RFID reader writer can be used in RFID based library management for library card registration, access control card registration, membership card management, etc.
