13.56MHz Small RFID Reader Module Multi Protocol Support Reader Host

13.56MHz Small RFID Reader Module Multi Protocol Support Reader Host
13.56MHz Small RFID Reader Module Multi Protocol Support Reader Host 13.56MHz Small RFID Reader Module Multi Protocol Support Reader Host 13.56MHz Small RFID Reader Module Multi Protocol Support Reader Host 13.56MHz Small RFID Reader Module Multi Protocol Support Reader Host 13.56MHz Small RFID Reader Module Multi Protocol Support Reader Host 13.56MHz Small RFID Reader Module Multi Protocol Support Reader Host
Basic Information
Place of Origin: CHINA
Brand Name: Andea Electronics
Model Number: PRL86
Minimum Order Quantity: 1 Piece
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3~5 work days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500~1000 Sets Per Month
Get Best Price Contact Now
Operating Frequency: 13.56MHz Compatible Protocols: ISO18000-3M3, ISO15693, ISO14443A/B
Communication Interface: RS232(TTL) , USB Size: 30 X 15 Mm
Reading Distance: 0-20cm Net Weight: 2g
Highlight:

rfid read write module

,

rfid reader writer module



13.56MHz Small Size RFID Reader Module Multi Protocol Support Reader Host



Product Introduction:

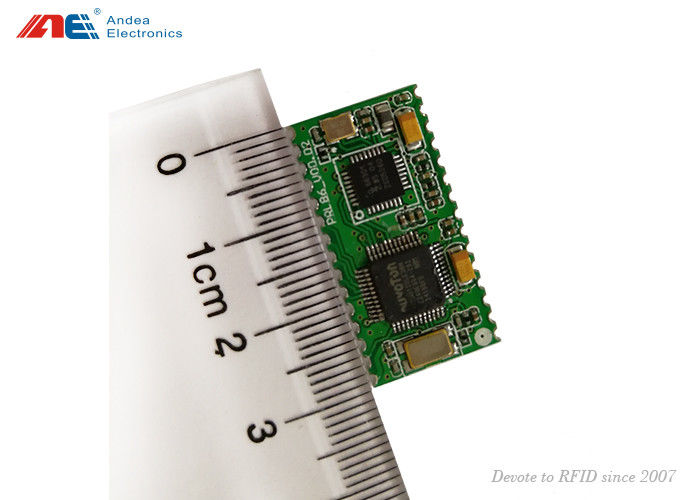

PRL86 adopts host-antenna seperated design , users can connect different antennas according to exact applications . PRL86 can support many kinds protocols , like ISO18000-3M3, ISO15693, ISO14443A/B .



Technical Specification :



 Model  PRL86
 Operating Frequency  13.56 MHz
 Compatible Protocols  ISO 15693, ISO 18000-3M3, ISO 14443A/B





 Compatible Chips
  •  NFC Forum Type 1: Innovision Topaz512
  • NFC Forum Type 2: Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, NTAG21x.
  • NFC Forum Type 3: Sony Felica [only support Polling]
  • NFC Forum Type 4: Mifare DESFire EV1
  • NFC Forum Type 5: ICODE SLI ,ICODE SLIX ,ICODE SLIX2 ,Tag-it HF- I plus
  • Mifare Classic Type: Mifare S50, Mifare S70 ,Mifare Mini
  • ISO18000-3M3 Type: ICODE ILT
  • ST ISO14443B Type: SRIX4K, SRI512, ST25TB512-AC
 Communication Interface  RS232(TTL), USB
 Working Voltage  3.3V DC
 Dimension  30*15mm
 Weight  2g



Customer Satisfaction:

  • Repair guarantee: Andea Provide one year free repair service after products purchased .
  • Feedback quickly: 24 hours online service and reply to your inquiry within 8 hours .
  • Free SDK , DEMO and technical support for your further development



Application :

  • Access control
  • Public transportation
  • Automatic identification
  • Inventory tracking
  • Payment systems
  • Robotics &Navigation
  • Product anti-forgery
