| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | EA2606-BL |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Operating Frequency: | 13.56 MHz | RF Interface: | SMA |
|---|---|---|---|
| Antenna Impedance: | 50Ω | Reading Range (2W): | 32cm |
| Max Support Power: | 4W | Weight: | 1410g |
| Highlight: | hf rfid antenna,rfid antenna |
||

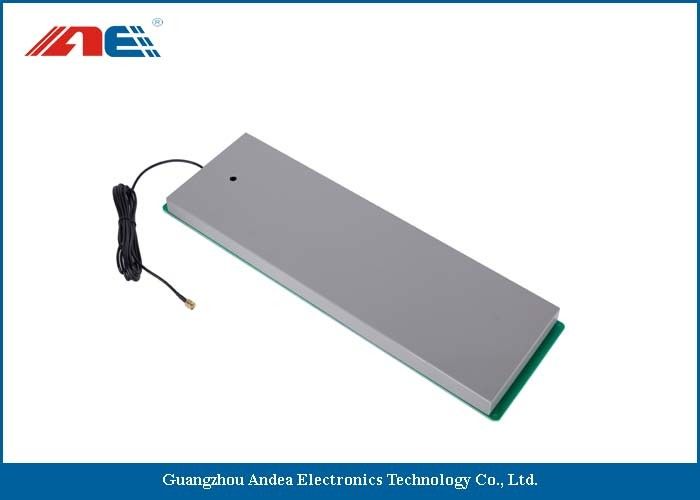

Product Introduction:
Due to its metal shielding design, EA2606-BL anti-metal RFID reader antenna is able to be embedded in five plate metal environment but work correctly. It could be embedded in RFID table, production line and other suitalbe device.
Product Benefits:
| Technical Specification | |
| Model | EA2606-BL |
| Operating Frequency | 13.56 MHz |
| RF Interface | SMA |
| Antenna Impedance | 50Ω |
| Max Support Power | 4W |
| Reading Range (2W) | 32cm |
| Feeder Length | 2.5m |
| Housing Material | PCB And Metal Plate |
| Dimension | 450*140*21.5mm |
| Weight | 1410g |
Product Application:
RFID management, RFID production automation, parcel sorting, AGV transporter, logistics, etc.
